SKIF12 Insulation Fault Locator

SKIF12 Insulation Fault Locator

Collect the fault location current of each branch,working with IMD
Description
SKIF12 has multiple wiring ports that can connect 12 high-precision low-frequency current transformers, which can collect the fault location current of each branch
through the low-frequency current transformers are installed on each branch.

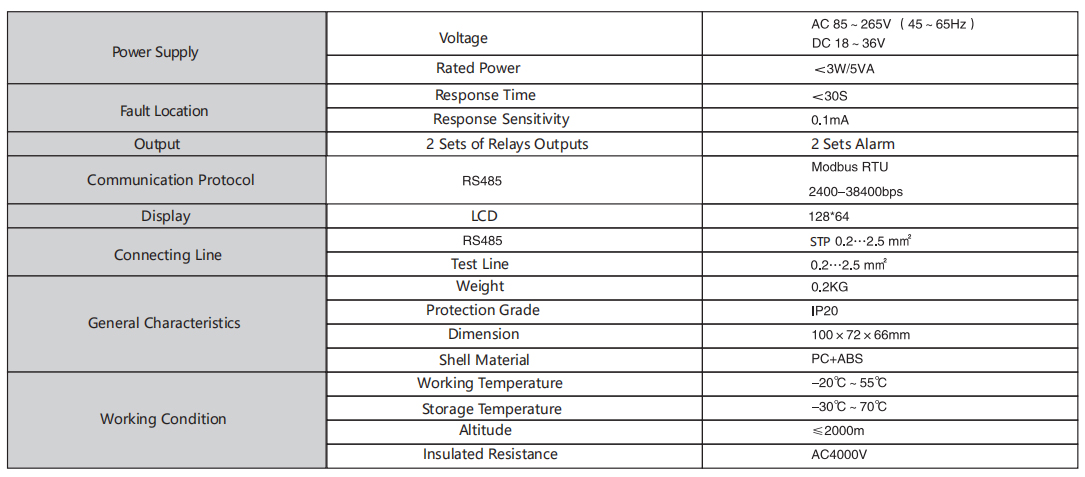

SKIF2 Insulation Fault Locator Specification:

System Composition

IFLS-600 System Description
SKIM600 Insulation Monitoring Device 1. Real time online monitoring of the insulation resistance value of the entire circuit;
2. Insulation warning and alarm function;
3. Send commands to the SKIFL-12 insulation fault location;
4. Send fault location signal.
SKIFL-12 insulation fault locator 1. Receive instructions from insulation monitoring device to collect data;
2. Connect the low-frequency current transformer;
3. Set fault current value.
CT/KCT low-frequency current transformer 1. Collecting fault currents on the installation branch



SKIF12  Insulation Fault Locator Technical Data Download
