RCMX100 Residual Current Relay

RCMX100 Residual Current Relay

Type A residual current monitor with digital display, used for leakage protection of pure AC permanent
Description
RCMX100 Series Introduction:
RCMX100 series residual current monitoring relay is an electrical safety preventive monitoring product with digital display. It is matched with CT and KCT precision residual current transformers and is used in AC grounded power grids. RCMX100 can accurately measure the residual current value of the power grid to the ground and judge the fault branch, and can transmit the residual current value to the host computer through the RS485 communication interface. One RCMX100 residual current monitoring relay can support 1 residual current monitoring. The product has the characteristics of strong anti-interference ability, high detection accuracy, and flexible networking.

RCMX100 Series Technical Data:

Items Parameters
RCMX100A(S) RCMX100C(S) RCMX100E(S) RCMX100G(S) RCMX100ZA RCMX100AC
Rated residual operating current I Δn 0.03～0.3A
4 settings		 0.1～1.0A
4 settings		 0.5～5.0A
4 settings		 2～10A
4 settings		 0.03～10A
10 settings		 0.03～30A
10 settings
Limit non-driving time Δt 0.1s /0.3s/0.5s/1s
(0.06s/0.1s/0.2s/0.3s)
4 settings adjustable		 0~5s
10 settings adjustable 		0~5s
10 settings adjustable
Relay Type Type A AC Type
Main circuit rated voltage Un(50Hz) The default is AC230(220)V. If you need AC380V, please specify in advance (AC110V can be customized)
Main circuit rated current In AC50～2000A
Rated short-time withstand current of main circuit Icw 10In
Early warning alarm With alarm function, but without early warning function (the suffix of the product model with early warning function is P)
Rated residual non-operating current I Δno 50%I Δn
Rated insulation impulse withstand voltage Between neutral line and phase line; 6KV
Auxiliary power supply voltage
Usn(50Hz)		 The default setting is AC230(220)V. If you need AC380V, please specify in advance (AC110V can be customized), Normal operating voltage range: 85%～110% Usn
Output contact type and capacity 1C contact, resistive load capacity: 5A/250V AC, 5A/30V DC
Indicator Lights Power indication: Green LED; Alarm indication: Red LED
Self-test Manual test button
Reset method Manual reset button
Power frequency withstand voltage Between terminal and housing AC2000V/50Hz,1min；
Output circuit disconnection contact AC1500V/50Hz,1min
Usage Environment Temperature: -20℃~+55℃, humidity 5%～75%RH (no condensation)
Storage Environment Temperature: -20℃~+70℃; Humidity 5%～85%RH (no condensation)
Pollution degree Pollution degree of 3
Installation category (overvoltage category) Use Category III
Protection degree IP20
Power consumption ≤5VA
Installation The transformer is installed by punching, and the monitoring relay TS35/7.5/NS 35/NS
32 is installed on the standard rail
Product dimensions See the dimension drawing for details
Product Weight Monitoring relay about 350g

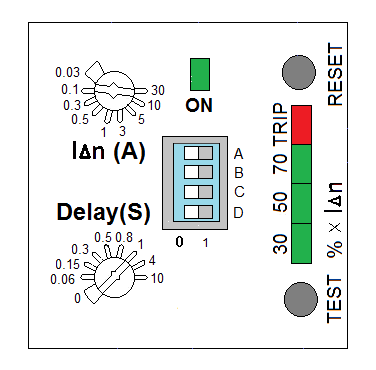

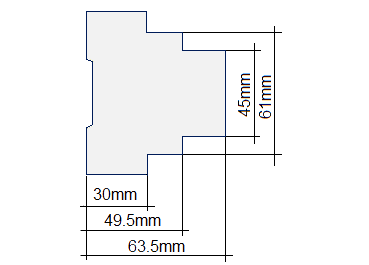

Product Dimension Drawing:

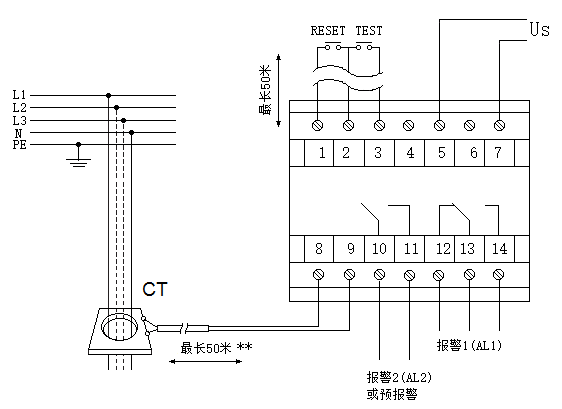

RCMX100 Series Wiring Diagram:
