SKMC-8 multi-channel current monitor is matched with CT and KCT precision current transformers for precise measurement in AC of TT system(earthed system) power grids,one SKMC-8 current monitor supports 8 channels current monitoring,which measures the ground current values of each branch and determine the faulty branch, and transmit the current values to the upper computer through the RS485 communication interface.
SKMC-8 multi-channel current monitor Features:
1. Capable of connecting 8 low-frequency current transformers to collect current from 8 branches; 2. Ability to set fault current alarm values for each branch;
3. Measurement display range 0.02A ⁓ 20A, current frequency 2-100Hz;
4. RS485 communication can be connected to the user's upper computer;
5. There are two sets of relays, and two sets of alarm values can be set;
6. LCD high-definition display screen 7. Strong anti-interference ability 8. High detection accuracy 9. Flexible networking.

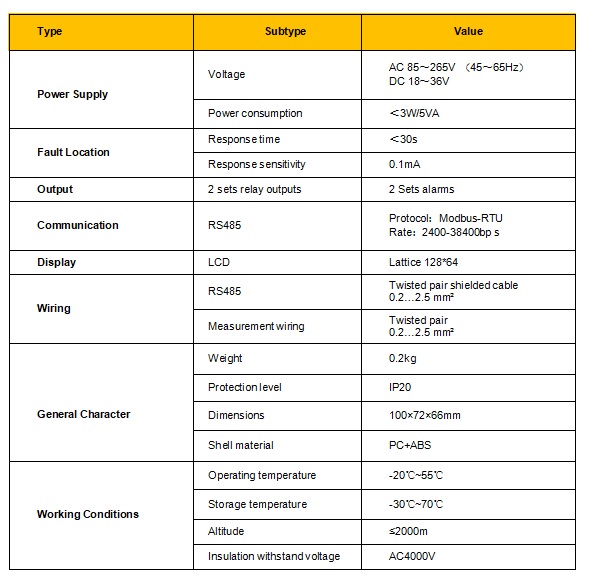

SKMC-8 Specification:

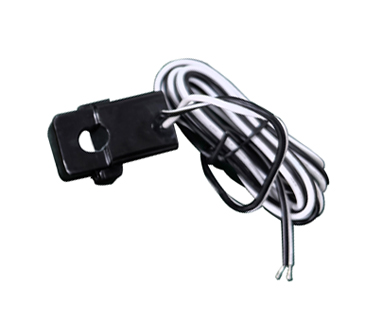

SKMC-8 Matching Current Transformer
Model
Main circuit current
Bore (mm)
KCT1-10A
0~20A
10
