Multi Channels Switch Quantity Transmitter

Multi Channels Switch Quantity Transmitter

Multi channels switch quantity transmitter is a high-performance switch input measurement module that achieves full isolation between switch node input and output, power supply, and communication port, greatly improving the reliability of the product. It is widely used in various industrial measurement and control systems, transmitting the measured switch state signal to the corresponding host through RS485 interface, and has 3 relay outputs for remote control. It adopts the standard MODBUS protocol and can be directly connected to various PLC and other devices.

Feature

1. Can provide 8 or 16 channels of switch data input;
2. 24V and 85-265V auxiliary power supplies are available for selection;
3. N1 is relay free output and N2 is 3-channel relay output can be provided as needed;
4. Using RS485 communication protocol interface output;
5. The product adopts an independently designed channel, which is safe and reliable.

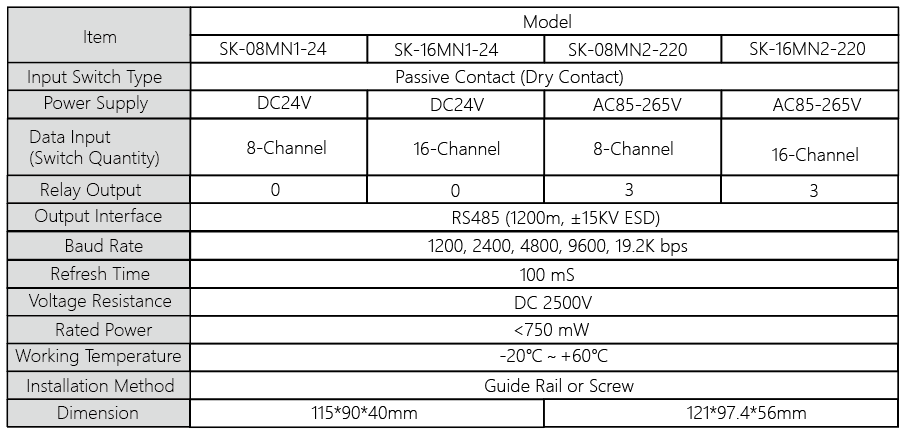

Technical Data


Data Multi Channel Switch Quantity Transmitter Technical Data Download
