VT1500 Vibration Temperature Sensor

VT1500 Vibration Temperature Sensor

Monitor one direction vibration and surface temperature of motor & rotating equipment
Description
The VT1500 series vibration Sensor is a high-performance integrated temperature and vibration sensor(transmitter) designed by Sikcon specifically for industrial occasions. It can be used for online monitoring of large rotating mechanical equipment such as motors, fans, compressors, pumps, etc. It has many significant advantages such as easy installation, stable and reliable operation, strong environmental adaptability and long service life. It also has the advantages of reverse connection protection, small size, light weight and strong anti-interference ability. The vibration sensor ((transmitter))consists of accelerometer, charge amplification, signal integration, true RMS detection, current conversion and other parts. It is sealed in a complete housing and has complete self-protection functions. It can work stably for a long time in harsh environments.

VT1500 Feature:
  • Utilize the positive piezoelectric effect of piezoelectric materials;
  • Built-in precision integration circuit, current output;
  • Used for absolute vibration velocity measurement of machine failure;
  • Can be installed vertically, horizontally or at any angle;
  • Optional explosion-proof design, suitable for dangerous occasions;
  • Customizable parameters such as range and temperature range.
VT1500 Technical Data
Item Parameters   Item Parameters
Dynamic performance   Environmental performance
Speed  range(RMS) 0-20mms
(Customizable)		   Impact limit (peak) 1000g
Sensitivity ±5% 0.8mA/mms   Temperature response(-40℃~120℃) ±10%
Zero output ±5% 4mA   Ambient temperature range 0~60℃
Full scale output±10% 20mA   Operating temperature range -40~+85℃
(Customizable)
Frequency response ±1dB 10~1000Hz   General Parameters
Frequency response ±3dB 4-1500Hz   Shell material 304不锈钢
Mounting resonant frequency 15,000Hz   Weight 150g
Maximum lateral sensitivity <5%   Installation 1/4-28
Resolution <0.01mms   Piezoelectric Materials PZT-5
Amplitude linearity ≤2%   Output method 4-pin MIL-C-5015
Maximum acceleration 10g   Transmission distance ≥100m
Electrical properties   Dimension 58.5*28.5
Power supply voltage 15~30VDC   Accessories (non-standard)
Load impedance 50(Vs-9)Ω   Sensor certificate Calibration parameters
Install ground insulation ≥108Ω   1/4-28 to M6 1
Temperature sensor parameters   Cable specifications 4*0.25mm²EN 50306-2
Sensitivity 0.1mA/℃
Temperature measurement range -40-120℃
(Customizable)
-40℃ Output (±10%) 4mA
120℃ Output (±10%) 20mA
Temperature error ±3℃

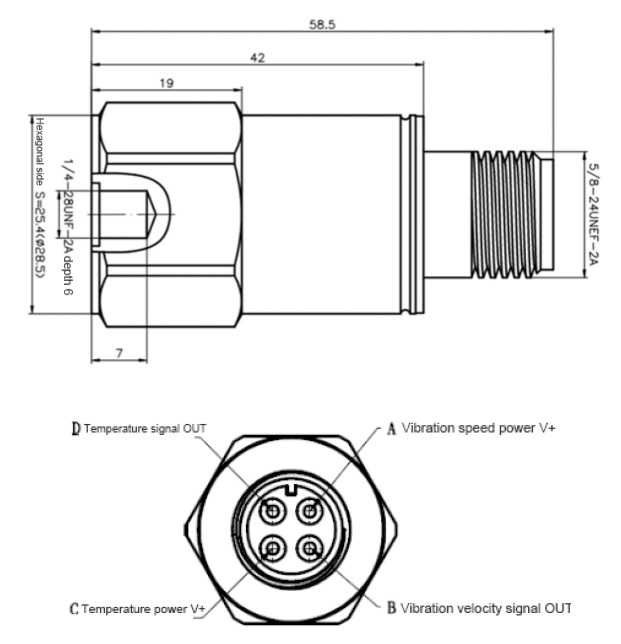

VT1500 Dimension



                                                           unit: mm
